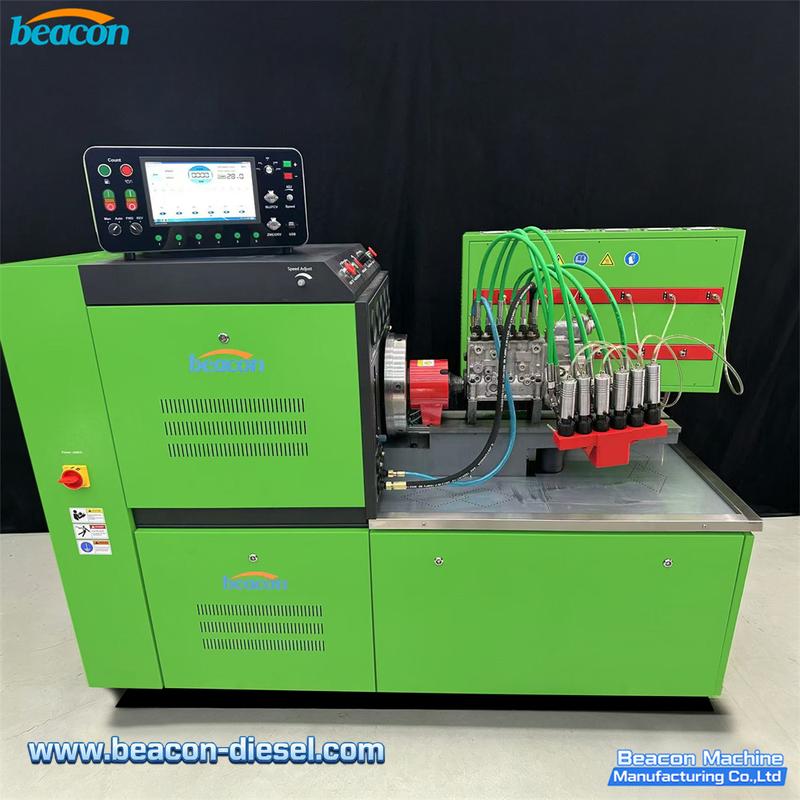

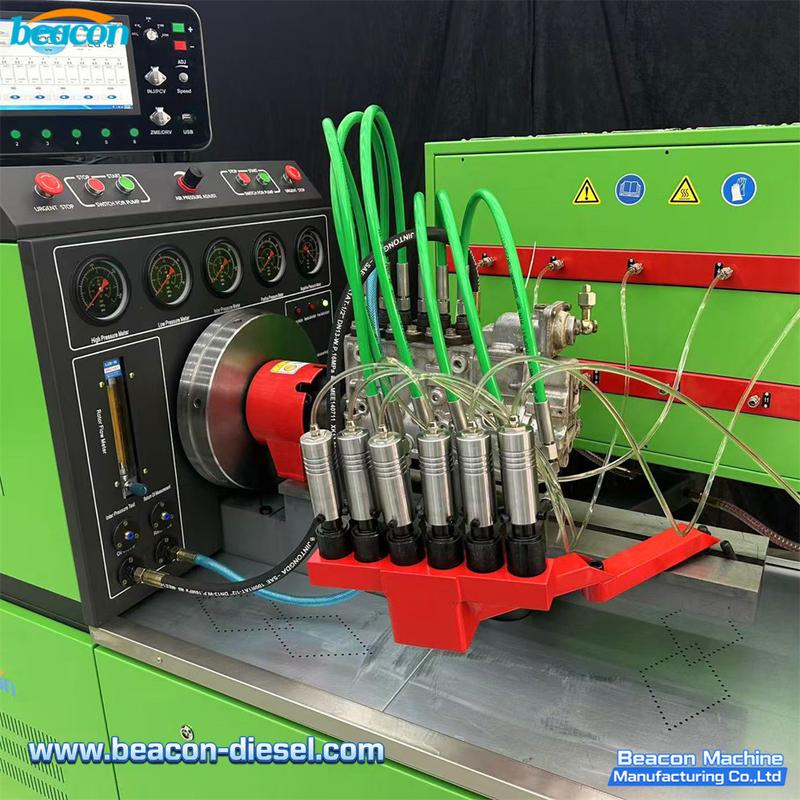

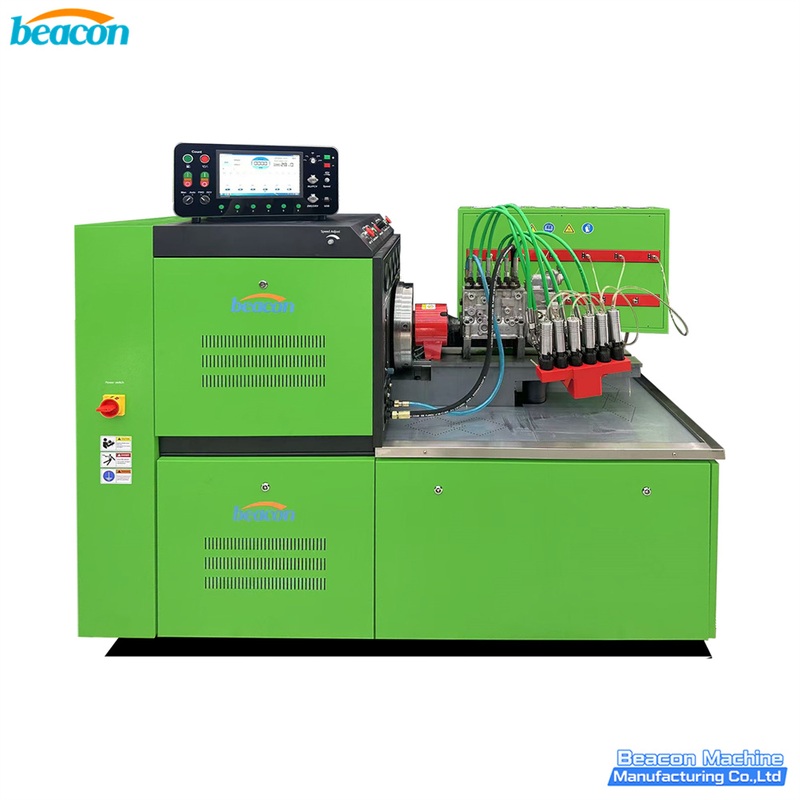

ES816 Diesel Injection Pump Test Bench - Variable Frequency Fuel Injection Pump Testing Machine

ES816 Diesel Injection Pump Test Bench

The Beacon ES816 is a professional variable frequency diesel injection pump test bench designed for accurate testing and calibration of both inline and rotary (distributor) fuel injection pumps. Equipped with the advanced YH-770 multi-function controller, it delivers precise digital measurement and reliable performance for diesel repair workshops.

Key Features

• Variable Frequency Drive: High-performance low-noise inverter provides a wide speed range of 20-4000 rpm with stable speed and large output torque
• YH-770 Controller: Advanced single-chip microcomputer control with digital display of speed, injection count, oil temperature, pressure/vacuum, and advance angle
• 10-Speed Preset: Ten preset spindle speed settings with (+) and (-) fine adjustment for precise control during testing
• Wide Pump Compatibility: Tests inline and rotary injection pumps including I, II, III, A, B, P, Z, and VE types with suitable accessories
• Digital Measurement: Real-time computer measurement of rotation speed, count, temperature, air pressure, advance angle, and rack travel displayed on 17-inch LCD touch screen
• Comprehensive Testing: Measures each cylinder delivery, supply interval angle, distributor pump internal pressure, oil return, and solenoid valve function (12V/24V)

Applications

• Diesel fuel injection pump repair and calibration
• Inline and rotary pump testing
• Mechanical governor checking and adjustment
• Distributor pump (VE) testing and adjustment
• Professional diesel workshop diagnostics

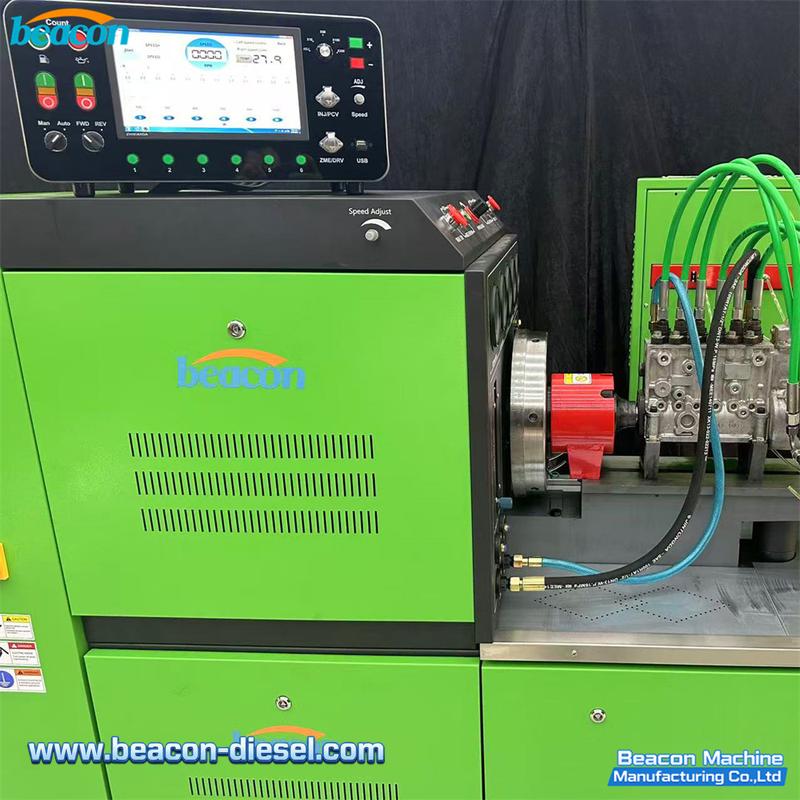

ES816 Diesel Injection Pump Test Bench - Control Panel Detail

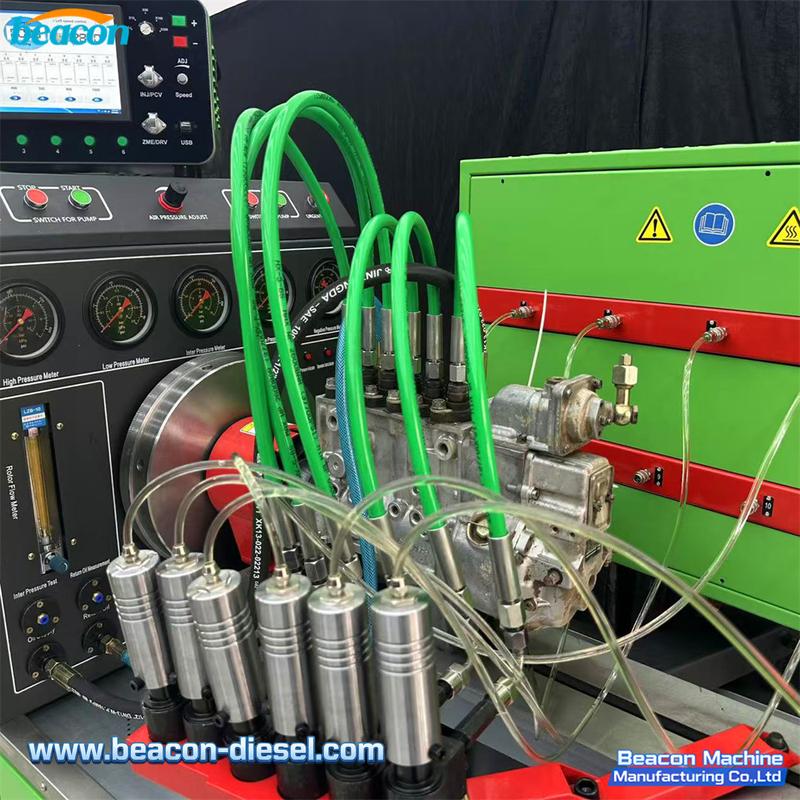

ES816 Fuel Injection Pump Tester - Measurement System

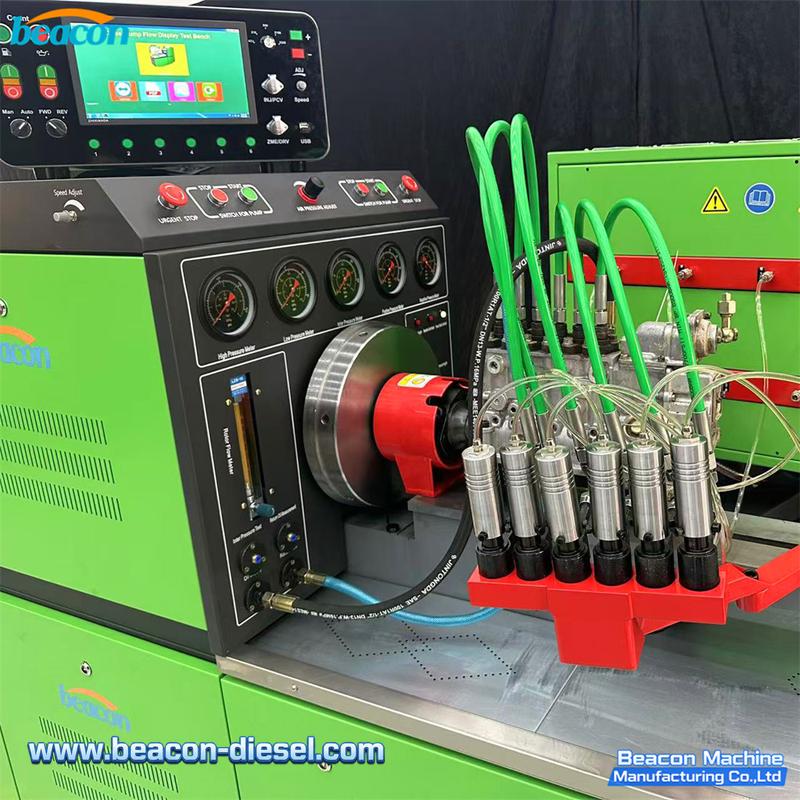

ES816 Variable Frequency Test Bench - Injector Assembly
